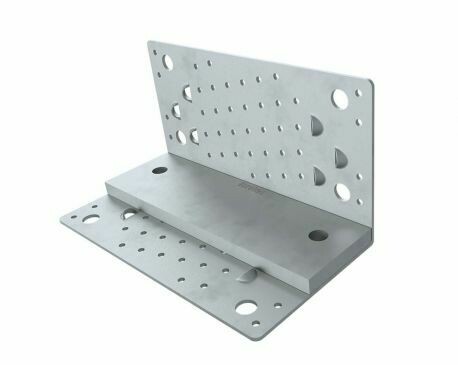

Steel Plate 12mm thick for attaching to the Shearing Angle Part 954112

Material

• Galvanised S250 construction steel

Advantages

• Many different areas of use
• For installation in wood and concrete
• Very high shear load-bearing capacity thanks to a new fixing concept
• Fewer connectors required
• In combination with the pressure plate, the following tensile forces can be absorbed when fixing in concrete

Instructions for use

6 slanted screw connection holes and 41 holes, which are optionally intended for angle-bracket screws (ABS) or anchor nails, are provided for anchoring in wood. Depending on the application, we have provided two additional partial utilisations of the fixing holes which are also available as static-type calculations. Anchoring in concrete is carried out using the holes (Ø 14 mm) provided for this purpose with our rock concrete screw or bolt anchors.
