DATA SHEET

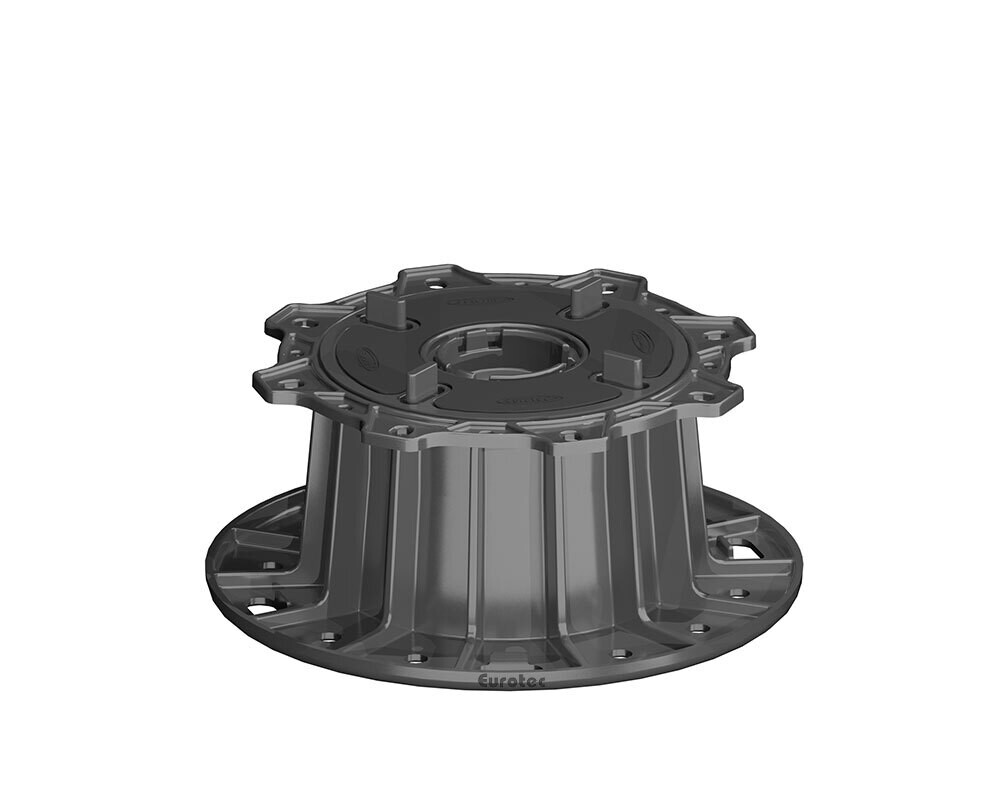

GIANT S adjustable pedestal

The GIANT adjustable pedestal from Eurotec are especially suitable for individually supporting heavy, large-format stone slabs or ceramic tiles. The range has four types to offer, each of which boasts an infinitely adjustable range from 40 to 220 mm. The body height can be increased by a further 170 mm with the GIANT extension ring.
The advantage behind the GIANT adjustable feet is the high load-bearing capacity. When assembled, a load of up to 22 kN/pedestal is possible. In the case of an assembly with extension ring, however, the load is 19 kN/pedestal* only.
Please observe the notes and information on the GIANT adjusting wrench in the product data sheet!
Advantages

• High load capacity of up to 22 kN/pedestal*
• Pre-installed impact noise disc absorbs impact noise
• For the individual support of heavy, large-format stone slabs/ceramic tiles
• Infinitely adjustable heights from 40 to 220 mm

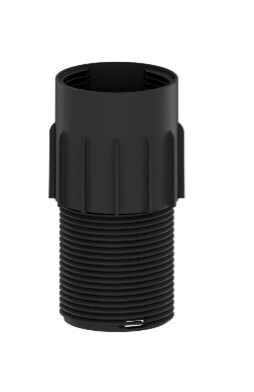

• The GIANT extension ring raises the height by another 170 mm
• Resistant to weather, UV exposure, insects and rot

*Maximum load capacity when retracted. Load capacity of 19 kN / pedestal when combined with the GIANT extension ring.
**Not included in the scope of supply.
